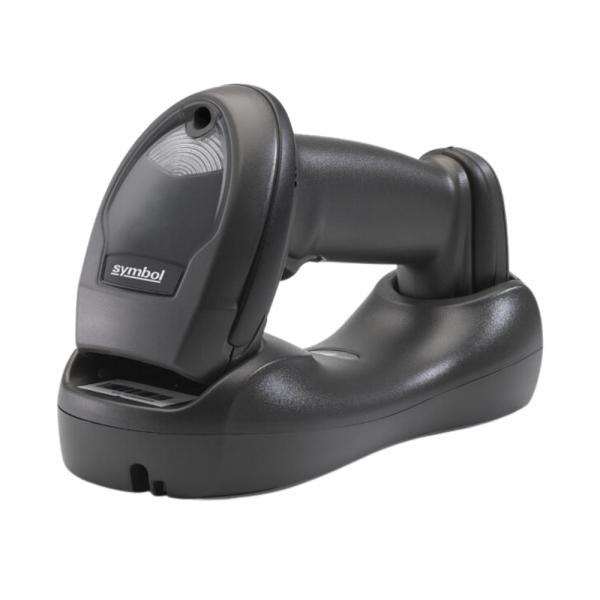

Zebra LI4278-TR Handheld Scanner - USB - BT-Cradle [LI4278-TRBU0100ZER]

Experience exceptional 1-D scanning performance with fast, accurate barcode reading and a wide data capture range. From standard labels to mobile phone displays, this scanner captures virtually all 1-D barcodes on any surface.

Physical Characteristics

• Dimensions: 3.84 in. H x 2.75 in. W x 7.34 in. L
  9.8 cm H x 7 cm W x 18.6 cm L

• Weight: 7.9 oz./224 grams

Performance Characteristics

• Hours of Operation: Per full charge: 72 hours
• Scans Per Charge: Up to 57,000
• Light Source: LED Class 1 device 617nm(amber)
• Motion Tolerance: 25 in./63.5 cm per second
• Scan Speed: 547 scans per second
• Scan Angle: Horizontal 35°
• Scan Pattern: Single bright aiming line
• Minimum Print Contrast: 15% MRD
• Skew Tolerance: +/-65°
• Pitch Tolerance: +/-65°
• Roll Tolerance: +/-45°

User Environment

• Operating Temperature: 32.0° F to 122.0° F / 0.0° C to 50.0° C
• Storage Temperature: -40.0° F to 158.0° F / -40.0° C to 70.0° C
• Humidity: 5% to 85% RH, non-condensing
• Drop Specification: Over 100 drops at 5 ft./1.5 m at room temperature; survives 6ft./1.8 m drops to concrete
• Environmental Sealing: IP53; Gasket sealed housing withstands dust and can be sprayed clean
• Ambient Light Immunity: Max 108,000 lux

Regulatory

• Environmental:RoHS
• Technical Requirements: EMC FCC Part 15 Class B, ICES 003 Class B, IEC 60601-1-2 Environmental RoHS Directive 2002/95/EEC Electrical Safety C22.2 No. 60950-1, EN 60950-1, IEC 60950-1, 60950-1 LED Class1
